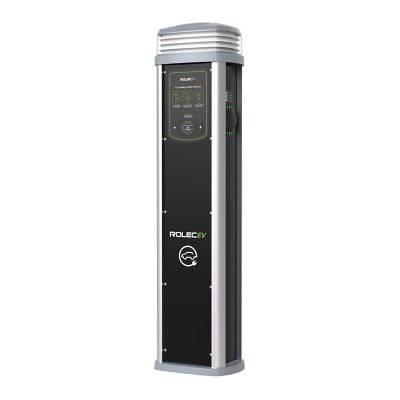

Rolec Quantum Smart EV Charging Pedestal - 2x up to 22kW 3PH Type 2 Sockets - Black - ROLEC0423B

£2,355.00

inc VAT

AvailableEarliest Estimated Delivery 6 - 8 Weeks
Rolec's Quantum EV pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. Suitable for many areas, the floor standing pedestal includes integrated LED amenity lighting to provide great visibilty of the charging bays to bring a high standard option to match the needs.
Rolec
ROLEC0423B
ROLEC0423B
5060723054846
ROLEC0423B-spec-sheet.pdf
Quantum

Frequently bought together

  1. Rolec Quantum Smart EV Charging Pedestal - 2x up to 22kW 3PH Type 2 Sockets - Black - ROLEC0423B
  2. +

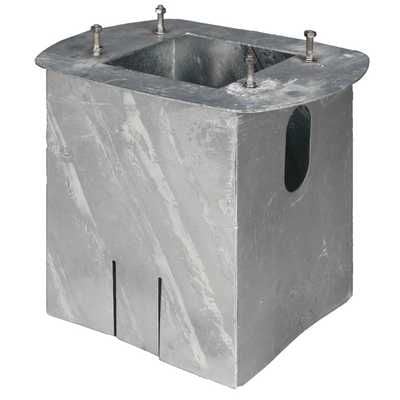

  3. Rolec QUANTUM:EV Bollard Ground Mounting Base - GMQR0010
  4. +
  5. Rolec EV CHARGING CABLES Type 2 (M) to Type 2 (F), Mode 3 22kW (32A) Plug-to-Plug 5m SuperFast Charging Cable - EVPP0105
  6. +
  7. Rolec RFID Fob - RFID0020
  8. +
  9. Rolec EV 48mm Root Mounted EV Charging Pedestal Protection Barrier - EVCB0020
Total price: £0.00

Rolec Quantum Smart EV Charging Pedestal - 2x up to 22kW 3PH Type 2 Sockets - Black - ROLEC0423B Details

The Rolec Quantum EV Charging Pedestal adds a sophisticated and resilient electric vehicle charging option that suits your needs with workplaces and public car park spaces. Providing a combination of durability and impeccable design for all locations, the Quantum Charging Pedestal with integrated LED amenity lighting that offers great visibility of charging bays. With Plug and Charge options or pay to charge solutions, the Quantum Charging Pedestal creates the perfect facility to suit the charging needs of your EV's and PHEV's.

Key Features

  • Colour: Black
  • Dimensions: 1440 x 375 x 275mm
  • Material: 2.5mm 6063 Extruded Aluminium
  • Mounting: Root or Surface
  • Charging Output: 22kW
  • Rated Current: 63A
  • Input Supply: 400V AC/50Hz (Three Phase)
  • Charge Protocol: Mode 3
  • Cable Terminals: 5x 50mm
  • Charging Socket: 2 x Type 2
  • Energy Metering: Integrated Class 1 MID Compliant Metering
  • Operating Temperature: -30℃ to 50℃
  • OCPP 1.6 Compliant
  • OZEV Grant Fundable
  • 4G / Wi-Fi / Ethernet Connectivity
  • Alexa & Google Assistant Compatible
  • Plug & Charge
  • Mobile App
  • RFID Controlled Charging
  • TruePEN PME Fault Detection
  • Integrated LED Amenity Lighting
  • 3 Year Manufacturer Guarantee
More Information
SKUROLEC0423B
MPNROLEC0423B
EAN5060723054846
ManufacturerRolec
Manufacturer's Guarantee3 Years
BrandRolec
ConditionNew
Product TypeFloor Charging Station
RangeQuantum
Height (mm)1440mm
Width (mm)375mm
Charging Socket Type2 x Type 2
Rated Output (kW)22kW
Rated Current (Amp)63A
Input Voltage400V AC/50Hz (3 Phase)
Charge ProtocolMode 3
Charging CableNo Cable
Cable Terminals5 x 50mm
ColourBlack
