Geberit Wall Hung Urinal Frame 112-130cm For Spray Head - Universal - 111.676.00.2
inc VAT
- Adjustable height
- Universal installation
- Powder coated, corrosion protected steel
- Sound absorbing
Frequently bought together

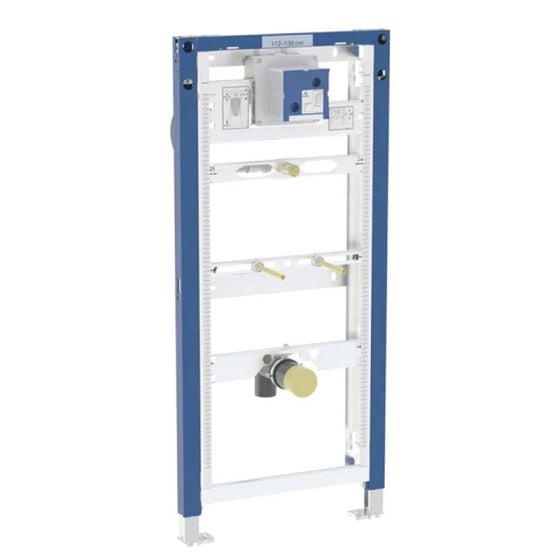

Geberit Wall Hung Urinal Frame 112-130cm for Spray Head - Universal - 111.676.00.2
This Geberit Urinal Frame is height adjustable designed for modern urinals with spray head flushing. Ideal for metal or wood frame walls, this universal model fits room height or part height pre-walls, making it a flexible solution for commercial and public restrooms.
Built for durability and quick installation, the frame features corrosion resistant materials, tool-free connectors, and pre-configured mounting points for Preda and Selva urinals. It supports Geberit urinal flush controls with integrated concealed housing and electrical connections.
Key Features
- 112–130cm element height to accommodate different urinal sizes
- Compatible with pre-walls & partition installations
- Statically self-supporting frame with powder-coated finish
- Integrated universal concealed housing for spray head flush controls
- Height-adjustable, sound-absorbing urinal fasteners
- Built-in conduit pipe & flush hose with guide prevent stagnant water
- Compact access panel: service opening cover (10.5 x 10.5cm) easily cut to length
Suitable For
- High-traffic commercial bathrooms
- Public toilet facilities
- Modern office installations
- Educational and healthcare environments
Specifications
- Flow pressure 1–8 bar
- Test pressure (water) Max. 16 bar
- Test pressure (air) Max. 3 bar
- Operating temperature Max. 30°C
- Flow rate (1 bar) 0.3 l/s (no limiter) / 0.18 l/s (with limiter)
Package Includes
- Elbow tap connector R 1/2
- PE-HD connection bend (ø63/50mm)
- Seal (ø57/50mm)
- Urinal trap (ø50mm) with seal
- Protection box with cover
- Fastening & protection material
| SKU | 111.676.00.2 |
|---|---|
| MPN | 111.676.00.2 |
| EAN | 4064746030963 |
| Manufacturer | Geberit |
| Manufacturer's Guarantee | 10 Years |
| Brand | Geberit |
| Condition | New |
| Product Type | Urinal Frame |
| Colour | Blue |
| Finish | Powder Coated |
| Width (mm) | 500mm |
| Height (mm) | 1300mm |
| Depth (mm) | 75mm |
| Material | Steel |
